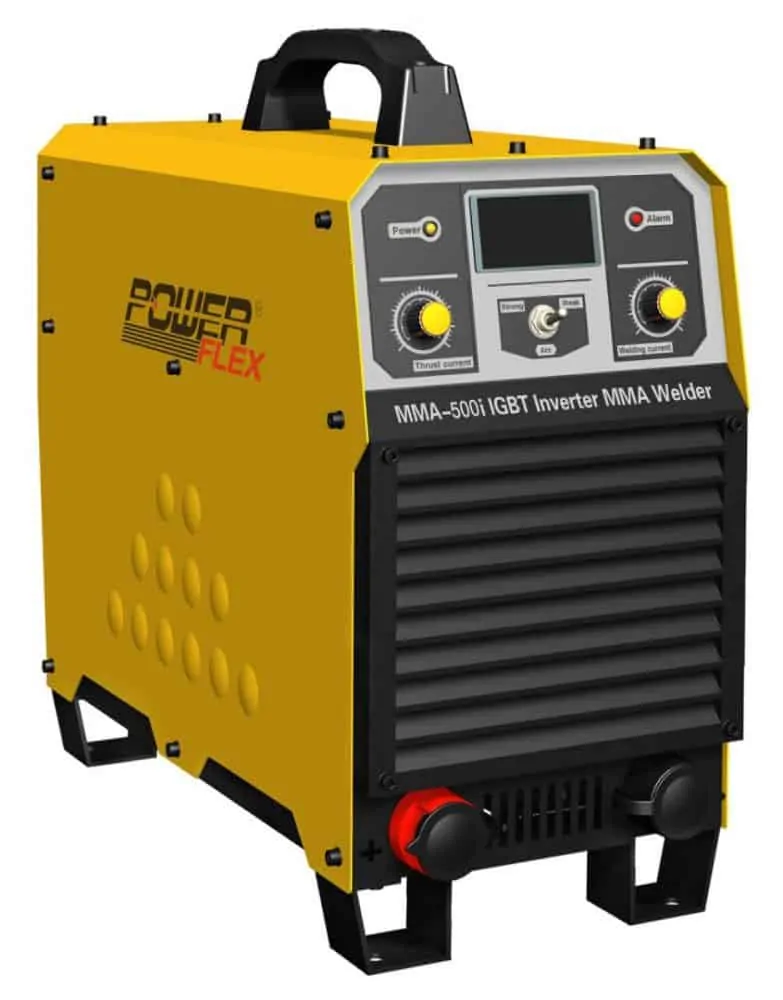

PowerFlex welding machine MMA-500i 3 phase electric-powered


SKU: WP3PMWM500iS Category:

PowerFlex welding machine MMA-500i 3 phase electric-powered

The 3 phase 500i  Heavy duty DC MMA Powerflex welding machine is light weight, heavy duty welding machine suitable for continuous working with gauge 12, 10, 8 and 6 number welding electrodes with suitable welding cables that can extend up to 50 meters. MMA 4001 is capable of welding both stainless steel (SS) and Mild steel (MS) with the finish minimum spatter.

Technical details of PowerFlex welding machine MMA-500i 3 phase electric-powered

Product Details UOM MMA-400i MMA-500i MMA-630i
Input Power Voltage (V) 415V ñ 10% 415V ñ 10% 415V ñ 10%
Frequency (Hz) 50/60 50/60 50/60
Rated Input Current (A) 32 45 66
No-Load Voltage (V) 75 80 85
Current Adjusting Range (A) 20-400 30-420 40-580
Duty Cycle (%) 60 60 60
Efficiency (%) 85 85 85

Other details is
Weight 58kg
IGBT welding machines

Manual Metal Arc (MMA) welding aims for cleaner high quality welding at relatively lower cost

Manual Metal Arc (MMA) also known as shielded metal arc welding (SMAW), also flux shielded arc welding also known as stick welding is the most flexible and one of the most widely used arc welding processes. It involves striking an arc between a covered metal electrode and a work piece.
The heat of the arc melts the parent metal and the electrode which mix together to form, on cooling, a continuous solid mass. The central metal electrode or core wire acts as a consumable, providing the filler metal for the weld. MMA welding can be used to join most steels, stainless steels, cast irons and many non-ferrous materials. For many mild and high-strength carbon steels, it is the preferred joining method.
We at Jash supplies supports the proper use of MMA welding for less cost of welding and getting the benefits of a smooth weld joint cleaner and friendlier.
We have stock of this product in our warehouses across Nigeria

Check out more of our Welding product: PowerFlex MIG IGBT Inverter MIG MAG MMA Welding Machine 400-Fi, Powerflex Air Plasma cutting machine LGK 63,  Powerflex Air compressor Gasoline driven 5.5HP 100 liters Tank Power flex welding machine 2 phase 250 amps Ac Arch welder,  Powerflex 9 inch grinding disc 230mm And many more

Weight58.5 kg
