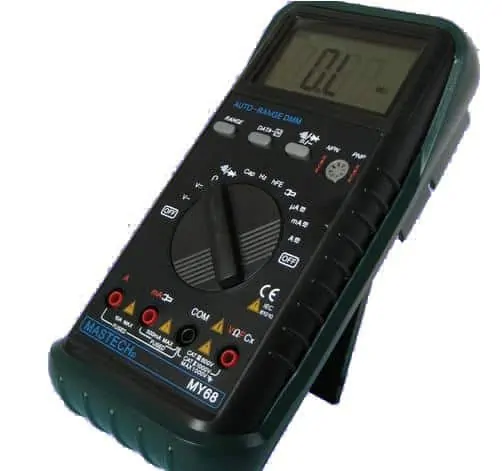

Mastech MY-68 – Digital Multimeter
Perfect for engineer and technician. MY68 Digital Multimeter 3 and 3/4 digits with automatic range selection. Frequency measurement up to 200kHz.
| Max. LCD display | 3260 |
|---|---|
| Range selection | manual/automatic |
| DC voltage | 400m/4/40/400V ?ñ0,7%, n1000V ?ñ0,8% |
| AC voltage | 400m ?ñ3,0%, n4/40/400V ?ñ0,8%, n750V ?ñ1,0% |
| DC current | 0,4/4/40/400mA ?ñ1,2%, n10A ?ñ2,0% |
| AC current | 0,4/4/40/400mA 1,5%, n10A ?ñ3,0% |
| Resistance | 400/4k/40k/400k/4M?? ?ñ1,2%, n40M?? ?ñ2,0% |
| Capacity | 4n ?ñ5,0%, n40n/400n/4?æ/40?æ/200?æF ?ñ3,0% |
| Frequency | 10/100/1k/10k/100k/200kHz ?ñ2,0% |
| Bandwidth | 40 ?ú 1000 Hz |
| Diode test | 1mA / 1,5V |
| hFE test | Ib=10?æA / Vce=2,8V |
| Sound signaling | < 50 ?? |
| Data hold | yes |
| Battery indicator | yes |
| Protection | yes |
| Impedance | 10 M?? |
| Power | 9V 6F22 battery |
| Manufacturer | Mastech |
