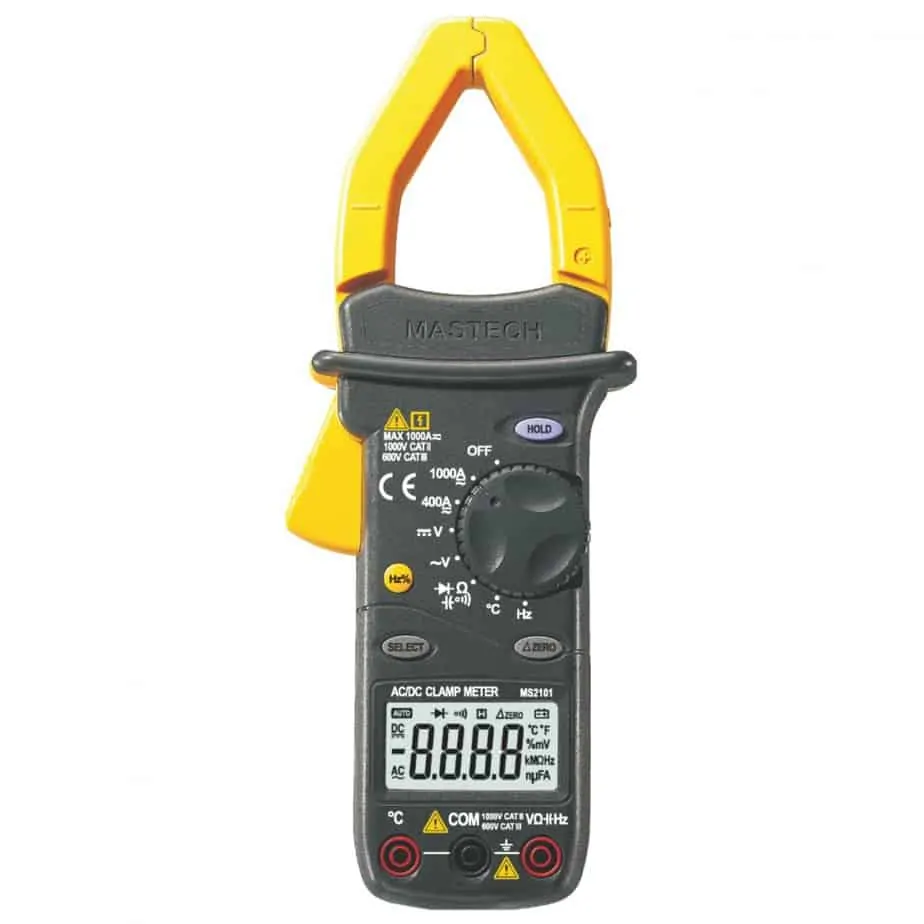

Mastech 2101 AC/DC Clamp meter

19,500.00

-3% New

ƒ? Display 4000 counts
nƒ? Jaw Opening ??42mm/1.7″
nƒ? Auto and Manual ranging
nƒ? Auto Power Off
nƒ? Diode Open Voltage 2.2V
nƒ? Continuity Buzzer <50?ñ20ƒ??
nƒ? Data Hold
nƒ? Low Battery Display

Compare

Mastech 2101 AC/DC Clamp meter

Specification



SpecificationsRangeResolutionAccuracy
DC Voltage400mV/4V/40V/400V0.1mV/1mV/10mV/0.1V(0.7%+1)
1000V1V(0.8%+3)
AC Voltage4V/40V/400V1mV/10mV/0.1V(0.8%+5)
750V1V(1.0%+10)
DC Current400A/1000A0.1A/1A(3.0%+3)
AC Current400A/1000A0.1A/1A(3.0%+3)
Resistance
400/4k/40k/400k/4M
0.1/1/10/0.1k/1k(1.2%+1)
40M10k(2.0%+3)
Capacitance4nF/40nF/400nF1pF/10pF/0.1nF(4.0%+10)
4æF/40æF/100æF1nF/10nF/100nF(4.0%+10)
Frequency40Hz/400Hz/4kHz0.01Hz/0.1Hz/1Hz(2.0%+1)
40kHz/100kHz10Hz/0.1kHz(2.0%+1)
Duty Cycle0.1%~99.9%0.1%(2.0%+2)
Temperature-40~01(1.0%+6)
1~4001(1.0%+3)
401~7501(1.0%+5)



Features

Display 4000 counts
Jaw Opening 42mm/1.7″
Auto and Manual ranging
Auto Power Off
Diode ?ÿOpen Voltage 2.2V
Continuity Buzzer <50-20ƒ??
Data Hold
Low Battery Display

Power Supply : ?ÿ1??9V 6F22 Battery
Product Size : ?ÿ250mm??99mm??43mm/9.8″??3.9″??1.7″
Product Weight : ?ÿ416g/0.92lb
Certification : ?ÿRoHS
Safety Rating : ?ÿCAT II 1000V / CAT III 600V

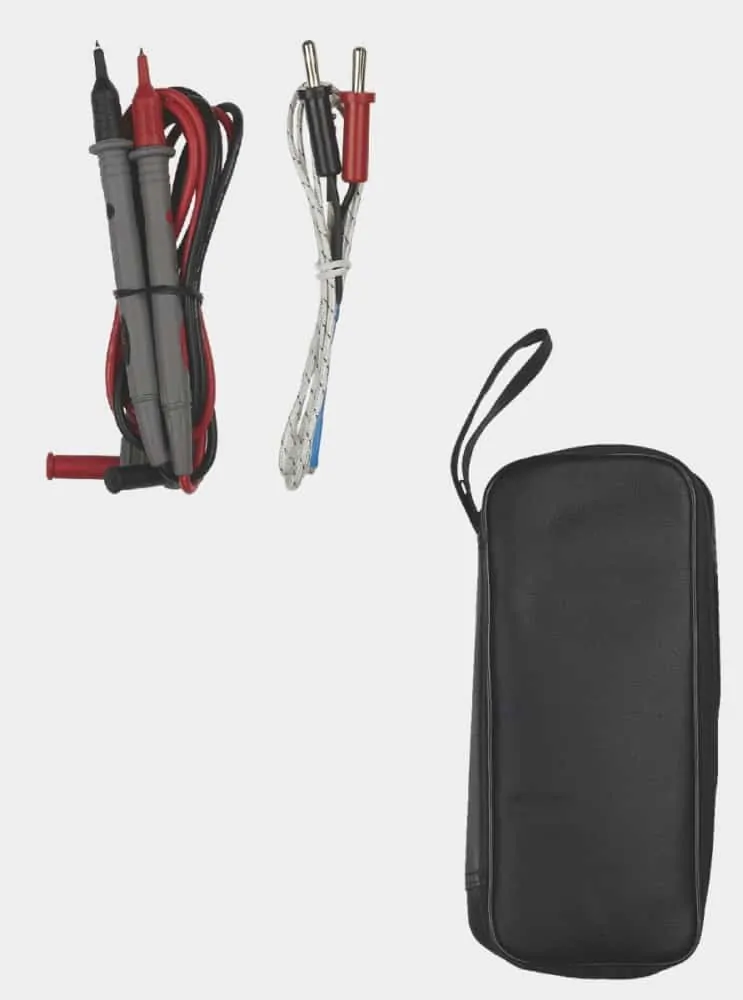

Whats in the Box

Test leads
K type thermocouple
Carry bag
Battery and User’s manual

Check out more Test And Measurement Product:Fluke 922 Airflow Meter/Micro-manometer,  Fluke VT04A IR Visual Thermometer, fluke 323 clamp meter,  Mastech MS8217 auto range multi-meter,  UNI-T 205 Clamp Meter, UNI-T 302D Infrared  Thermometer, And many mor

Download user manual HERE
Weight1 kg
