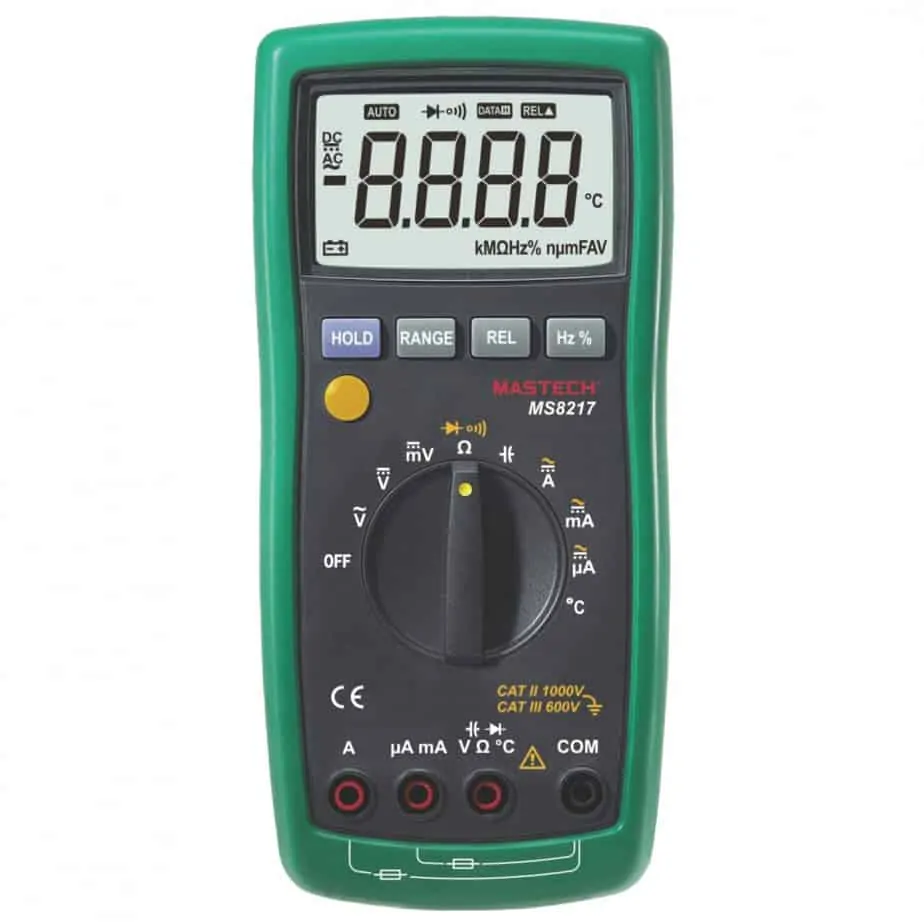

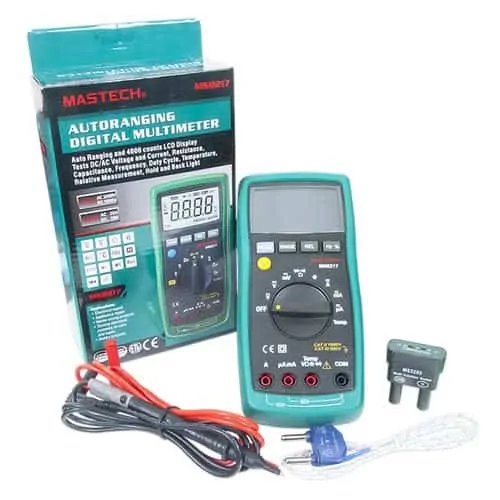

Mastech MS8217 auto range multi-meter

Mastech MS8217 auto range multi-meter

Built ruggedly for everyday use, the Mastech MS8217 auto range multi-meter is perfect for reliable & stable electrical testing.

Features:

• • 4000 counts

• • Diode test/Buzzer

• • Temperature Test

• • Frequency/Duty Cycle

• • Relative Measurement

• • Data Hold

• • Auto Power Off

• • Auto/Manual Ranging

• • Holster (secondary injection)

• • Mechanical/Electronic Protection System

• • In conformity with IEC 1010 CAT II 1000V

• • Convenient Fuse/Battery Change Design

• • Battery Life up to 500 Hours

• • Lifetime Warranty

Specifications:

DC Voltage range: 0.1 mV-1000 V
DC Voltage accuracy: ?ñ (0.5%+3digits)
DC Current range: 0.1 ?¬ A-10 A
DC Current accuracy: ?ñ (1.5%+3 digits)
AC Voltage range: 0.1 mV-1000 V
AC Voltage accuracy: ?ñ (1.0%+3 digits)
AC Voltage Freq. response: 40 Hz-500 Hz
AC Current range: 0.1 ?¬ A-10 A
AC Current accuracy: ?ñ (1.5%+3 digits)nAC Current Freq. response: 40 Hz-200 Hz
Resistance range: 0.1??-40 M??
Resistance accuracy: ?ñ (0.5%+2 digits)
Capacitance range: 0.01 nF-100?¬F
Capacitance accuracy: ?ñ (3.0%+5 digits)
FREQUENCY/DUTY CYCLE Range: 10 Hz-100 kHz
FREQUENCY/DUTY CYCLE Accuracy: ?ñ (0.1%+3 digits)
TEMPERATURE Range: -55?øC-1000?øC
TEMPERATURE Accuracy: ?ñ (2.0%+1?øC)
