Mastech 8217 Auto Range Multimeter

13,000.00

New
Compare

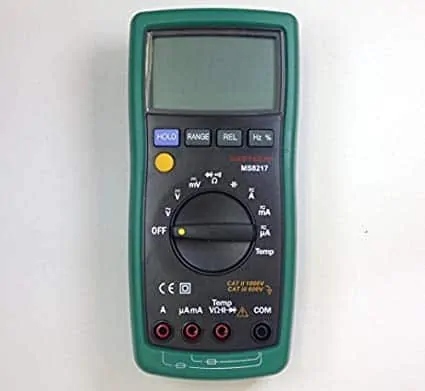

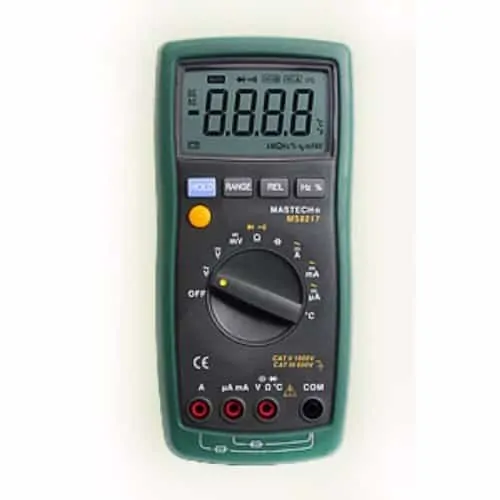

Mastech 8217 Auto Range Digital Multimeter

Built ruggedly for everyday use, the MS8217 digital multimeter is perfect for reliable & stable electrical testing.

Features:

4000 counts
Diode test/Buzzer
Temperature Test
Frequency/Duty Cycle
Relative Measurement
Data Hold
Auto Power Off
Auto/Manual Ranging
Holster (secondary injection)
Mechanical/Electronic Protection System
In conformity with IEC 1010 CAT II 1000V
Convenient Fuse/Battery Change Design
Battery Life up to 500 Hours
Lifetime Warranty

Specifications:

DC Voltage range: 0.1 mV-1000 V
DC Voltage accuracy: ?ñ (0.5%+3 digits)
DC Current range: 0.1 ?¬ A-10 A
DC Current accuracy: ?ñ (1.5%+3 digits)
AC Voltage range: 0.1 mV-1000 V
AC Voltage accuracy: ?ñ (1.0%+3 digits)
AC Voltage Freq. response: 40 Hz-500 Hz
AC Current range: 0.1 ?¬ A-10 A
AC Current accuracy: ?ñ (1.5%+3 digits)
AC Current Freq. response: 40 Hz-200 Hz
Resistance range: 0.1??-40 M??
Resistance accuracy: ?ñ (0.5%+2 digits)
Capacitance range: 0.01 nF-100?¬F
Capacitance accuracy: ?ñ (3.0%+5 digits)
FREQUENCY/DUTY CYCLE Range: 10 Hz-100 kHz
FREQUENCY/DUTY CYCLE Accuracy: ?ñ (0.1%+3 digits)
TEMPERATURE Range: -55?øC-1000?øC
TEMPERATURE Accuracy: ?ñ (2.0%+1øC)

Check out more Test And Measurement Product:Fluke 922 Airflow Meter/Micro-manometer,  Fluke VT04A IR Visual Thermometer, fluke 323 clamp meter,  Mastech MS8217 auto range multi-meter,  UNI-T 205 Clamp Meter, UNI-T 302D Infrared  Thermometer, And many more

Weight1 kg
