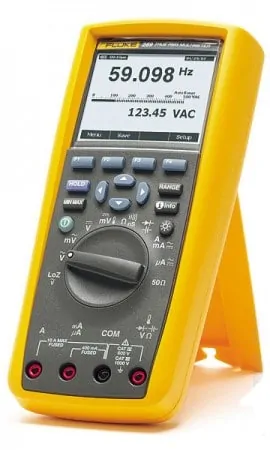

Fluke 289 True-RMS Logging Multimeter
Buy original Fluke 289 true-rms data logging multimeter In Nigeria @ jashsupplies.com
Make Your Work easy, Make your Life Easier
Learn How Fluke 289 true rms data logging multimeter works here
Download Datasheet/Manual f0r Fluke 289 true rms data logging multimeter pdf
Fluke Corporations is the foremost Manufacturer and Makers of industrial test, measurement and diagnostic equipment including electronic test equipment. Known for quality and precision worldwide, Fluke is the standard for measuring Test and equipment manufacturers.
Original Fluke Test and measurement equipment is sold @jashsupplies.com with 12months warranty
Read More
Fluke 289 True-RMS Logging Multimeter helps you find little problems before they become big ones
The Fluke 289 is the next generation high performance industrial logging multimeter. This Fluke Connect-compatible DMM is designed to solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. Let the 289 be your watchdog for systems or processes while you are off doing other jobs. It provides the ability to log data and graphically review up 10,000 recorded events and logged readings with on-board TrendCapture. Zoom on trend provides a 14x zoom to view and analyze data—without needing a PC.
Because the 289 is Fluke Connect-compatible you can set it up with the ir3000 FC wireless connector (sold separately) to communicate with your iOS and Android smart devices through the Fluke Connect mobile app and monitor readings from a remote location. Or you can share readings with your team in an instant anytime, from anywhere with ShareLive™ video call. It can help you solve problems faster and minimize downtime.
Other useful features:
- Provides up to a 14x zoom to view and analyze TrendCapture data in depth
- Includes a selectable AC filter (smoothing mode) to help display a steadier reading when the input signal is changing rapidly or noisy.
- Offers adjustable recording and auto hold thresholds to specify a percentage change in the readings that begins a new event
- Features a large 50,000 count, 1/4 VGA dot matrix display with white backlight
- Stores up to 15,000 recorded events so you can save multiple logging sessions before PC download is necessary
- Provides two-terminal 50 ohm range with 1 milliohm resolution, 10 mA source current, for measuring and comparing differences in motor winding resistance or contact resistance
- Includes low pass filter for accurate voltage and frequency measurements at the same time on adjustable speed motor drives and other electrically noisy equipment.
- Provides LoZ Volts, a low impedance voltage function for eliminating ghost voltages Recommended when testing for absence or presence of live power
- Features on-board help screens for measurement functions
- Includes a real-time clock to automatically time stamp saved readings
- Offers relative mode to remove test lead resistance from low ohms or capacitance measurements
- Provides True-RMS AC voltage and current for accurate measurements on non-linear signals
- Measures up to 10 A (20 A for 30 seconds)
- Provides up to 100 mF capacitance range

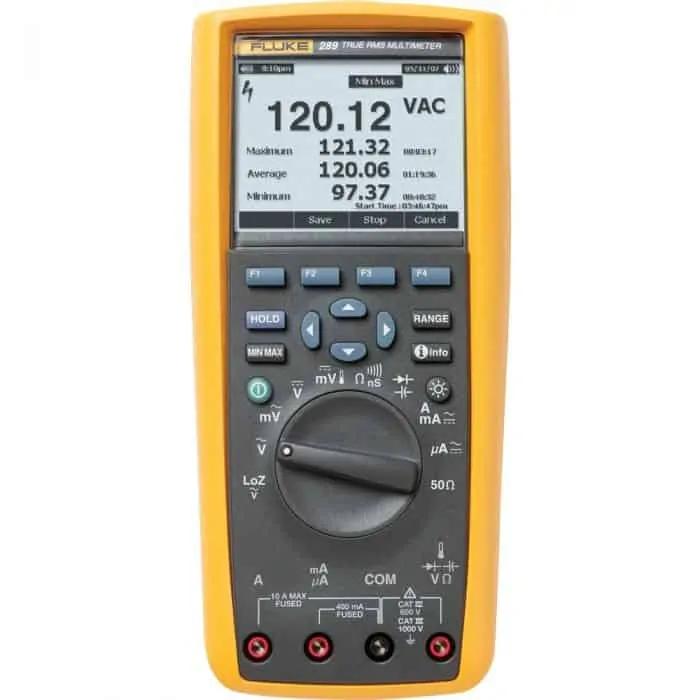

Fluke 289 True-RMS Data Logging Multimeter
Key features
Equipped with new functionality
- Share results with your team using ShareLive™ video call (requires ir3000 FC wireless connector [sold separately] and no-cost Fluke Connect mobile app).
- TrendCapture graphically displays logged data session to quickly determine whether anomalies may have occurred.
- Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times.
- Selectable AC filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy.
- Low Pass filter for accurate voltage and frequency measurements at the same time on adjustable speed motor drives and other electrically noisy equipment.
- LoZ Volts. Low impedance voltage function for eliminating ghost voltages. Also recommended when testing for absence or presence of live power.
- Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a new event.
- Large 50,000 count, 1/4 VGA dot matrix display with white backlight.
- Logging function with expanded memory for unattended monitoring of signals over time. Using on-board TrendCapture users can graphically review logged readings without needing a PC. Store up to 15,000 recorded events
- Fluke 289 Specifications
| DC Volts | |
| Range/Resolution | 50.000 to 500.00 mV 5.0000 to 50.000 V 500.00 to 1000.0 V |
| Basic Accuracy | 0.025% |
| AC Volts | |
| Range/Resolution | 50.000 to 500.00 mV 5.0000 to 50.000 V 500.00 to 1000.0 V |
| Basic Accuracy | 0.4% (True RMS) |
| DC Current | |
| Range/Resolution | 500.00 to 5000.0 µA 50.000 to 400.00 mA 5.0000 to 10.000 A |
| Basic Accuracy | 0.05% |
| AC Current | |
| Range/Resolution | 500.00 to 5000.0 µA 50.000 to 400.00 mA 5.0000 to 10.000 A |
| Basic Accuracy | 0.6% (True RMS) |
| Temperature (Excluding Probe) | |
| Range/Resolution | 328 to 2462°F (-200 to 1350°C) |
| Basic Accuracy | 1.0% |
| Resistance | |
| Range/Resolution | 50.000 to 500.00 Ω 5.0000 to 50.000 kΩ 500.00 kΩ to 5.0000 MΩ 50.00 to 500.0 MΩ |
| Basic Accuracy | 0.05% |
| Capacitance | |
| Range/Resolution | 1.000 to 10.00 nF 100.0 nF to 1.000 µF 10.00 to 100.0 µF 1000 µF to 100 mF |
| Basic Accuracy | 1.0% |
| Frequency | |
| Range/Resolution | 99.999 to 999.99 Hz 9.9999 to 999.99 kHz |
| Basic Accuracy | 0.005% |
| General Specifications | |
| Maximum Voltage Between any Terminal and Earth Ground | 1000 V |
| Battery Type | 6 x AA Alkaline batteries, NEDA 15A IECLR6 |
| Battery Life | 100 hours minimum, 200 hours in logging mode |
| Operating Temperature | -4 to 131°F (-20 to 55°C) |
| Storage Temperature | -40 to 140°F (-40 to 60°C) |
| Relative Humidity | 0 to 90% (32 to 98.6°F [0 to 37°C]) 0 to 65% (98.6 to 113°F [37 to 45°C]) 0 to 45% (113 to 131°F [45 to 55°C]) |
| Electromagnetic Compatibility | EMC EN61326–1 |
| Vibration | Random vibration per MIL-PRF-28800F Class 2 |
| Shock | 3.3 (1 m) drop per IEC/EN 61010–1 3rd Edition |
| Dimensions | 8.75 x 4.03 x 2.38″ (222 x 102 x 60 mm) |
| Weight | 1.92 lbs (870.9 g) |
Datasheet/user manual/Calibration Manual for Fluke 289 true rms multimeter
[/read]
