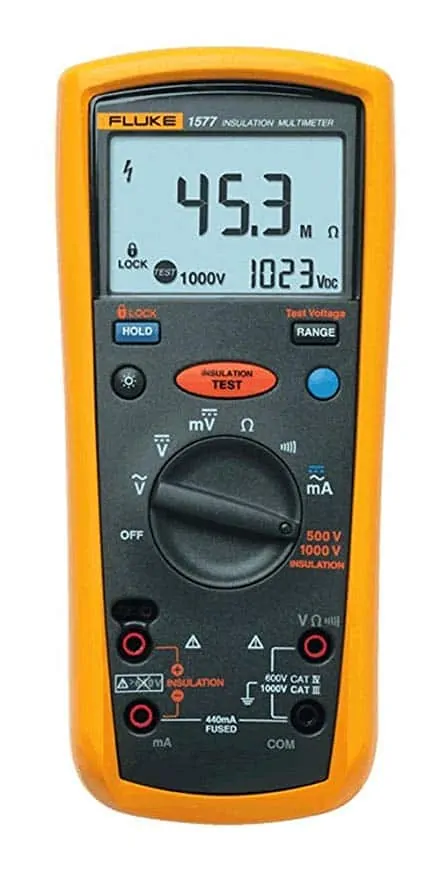

Fluke 1577 Insulation Meter
Buy original Fluke 1577 Insulation Meter In Nigeria @ jashsupplies.com
Make Your Work easy, Make your Life Easier
Learn How Fluke 1577/1587 Insulation Multimeter works here
Download Datasheet/Manual f0r Fluke 1577/1587 multimeter .pdf
Fluke Corporations is the foremost Manufacturer and Makers of industrial test, measurement and diagnostic equipment including electronic test equipment. Known for quality and precision worldwide, Fluke is the standard for measuring Test and equipment manufacturers.
Original Fluke Test and measurement equipment is sold @jashsupplies.com with 12months warranty
Read More
Fluke makers various insulation meter to meet the needs of end users, like
Fluke 1587 and
Fluke 1577 insulation meter for the measuring Insulation and resistance in appliances to prevent electric shock and short circuits while interacting with the equipment.
Two powerful tools in one, The Fluke 1587 and 1577 Insulation Multimeters combine a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance.
Whether you work on motors, generators, cables, or switch gear, the Fluke 1587/1577 Insulation Multimeters are ideally suited to help you with your tasks and at a cost that is far less than buying the two products.
Fluke 1577 Insulation Meter is suitable for electricians, Electronic technician, Electrical Engineers and all persons that deals with electrical appliances
Suitable for Industrial and home use Read More
Specifications: Fluke 1577 Insulation Meter
| Specifications |
| Voltage DC | Maximum voltage | 1000 V |
| Accuracy | (0.2%+2) |
| Maximum resolution | 0.001 V |
| Voltage AC | Maximum voltage | 1000 V |
| Accuracy | (2%+3) |
| Maximum resolution | 0.1 mV |
| Current DC | Maximum amps | 400 mA |
| Amps accuracy | (1.0%+2) |
| Maximum resolution | 0.01 mA |
| Current AC | Maximum amps | 400 mA |
| Amps accuracy | (2.0%+2)* |
| Maximum resolution | 0.01 mA |
| Resistance | Maximum resistance | 50 M |
| Accuracy | (1.2%+2) |
| maximum resolution | 0.1 |
| Insulation Test |
| Minimum test current @ 1k??/V | 1 mA |
| Test voltages | 500, 1000 V |
| Maximum resistance per test voltage | 50 V | |
| 100 V | |
| 250 V | |
| 500 V | |
| 1000 V | 600 M |
| Maximum resolution per test voltage | 50 V | 0.01 M |
| 100 V | 0.01 M |
| 250 V | 0.1 M |
| 500 V | 0.1 M |
| 1000 V | 0.1 M |
| Accuracy per test voltage | 50 V | ?ñ(3% + 5) |
| 100 V | ?ñ(3% + 5) |
| 250 V | ?ñ(1.5% + 5) |
| 500 V | ?ñ(2.0% + 5) |
| 1000 V | ?ñ(2.0% + 5) |
| Environmental Specifications |
| Operating temperature | 20øC to +55øC |
| Storage temperature | -40øC to +60øC |
| Humidity (without condensation) | 0% – 95% (10øC 30øC)
n0% – 75% (30øC 40øC)
n0% – 40% (40øC 55øC) |
| Operating altitude | 2000 m |
| Safety Specifications |
| Overvoltage category | Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement CAT III 1000 V and CAT IV 600 V |
| Agency approvals | 2000 m CAT III 1000 V, CAT IV 600 V; 3000 m CAT II 1000 V, CAT III 600 V |
| Mechanical and General Specifications |
| Size | 203 x 100 x 50 mm (with holster) |
| Weight | 624 g |
| Warranty | 3 years |
| Battery life alkaline | Meter use | 1000 hours |
| Insulation test use | Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 M with a duty cycle of 5 seconds on and 25 seconds off. |
| IP rating | IP40 |
Datasheet/user manual/Calibration Manual for Fluke 1577 Insulation Meter
