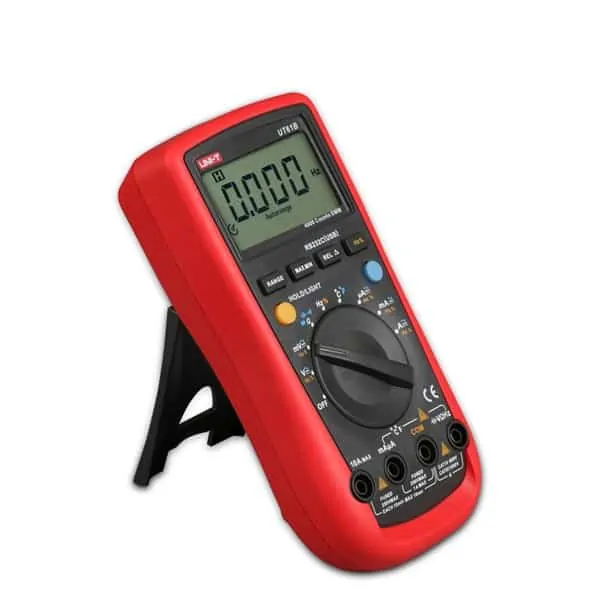

UNI-T UT61B Multimeter

UNI-T UT61B Multimeter

SPECIFICATION:

DC Voltage Measurement:
40mV +/- (0.8%+3)
400mV +/- (0.8%+3)
4V / 40V / 400V +/- (0.5%+1)
1000V +/- (1.0%+3)
AC Voltage Measurement:
40mV +/- (1.2%+5)
400mV +/- (1.2%+5)
4V / 40V / 400V +/- (1.0%+3)
750V +/- (1.2%+5)

DC Current Measurement:

400?æA / 4000?æA +/- (1.0%+2)
40mA / 40mA +/- (1.2%+3)
4A / 10A +/- (1.5%+3)
AC Current Measurement:
400?æA / 4000?æA +/- (1.2%+5)
40mA / 400mA +/- (1.5%+5)
4A / 10A +/- (2.0%+5)

Resistance Measurement:

400 Ohm +/- (1.2%+2)
4 kOhm / 40 kOhm / 400 kOhm +/- (1.0%+2)
4 MOhm +/- (1.2%+2)
40 MOhm +/- (1.5%+2)
Capacitance Measurement:
40nF +/- (3.0%+5)
400nF / 4?æF / 40?æF +/- (3.0%+5)
400?æF +/- (4.0%+5)

Temperature Measurement ?øC:

-40?øC ~ -20?øC – (8.0%+5)
> -20?øC ~ 0?øC +/- (1.2%+4)
> 0?øC ~ 100?øC +/- (1.2%+3)
> 100?øC ~ 1000?øC +/- (2.5%+2)

Temperature Measurement ?øF:

-40øF ~ 4?øF – (8.0%+6)
> 4øF ~ 32?øF +/-(1.2%+5)
> 32øF ~ 212?øF +/-(1.2%+4)
> 212øF ~ 1832?øF +/-(2.5%+3)
Frequency: 10Hz~10MHz +/-(0.1%+4)
Frequency Response: 45 ~ 400Hz
Duty Cycle: 0.1% ~ 99.9%

SPECIAL FUNCTIONS:

Manual Ranging
Diode
Continuity Buzzer
Data Hold
Max/Min Mode
Display Backlight
REL
Sleep Mode Around 15 Minutes
Analogue Bar Graph 41
RS232(USB)
Fuse
Input Impedance for DC Voltage Measurement Around 10 MOhm
Low Battery Display <7.5V

GENERAL CHARACTERISTICS:

Power 9V Battery (6F22) x 1
LCD Size 65 x 43mm
Product Net Weight 370g
Product Size 180 x 87 x 47mm

Parameters of UNI-T UT61B Multimeter
