TOYO CHAIN BLOCK (CHAIN HOIST)
Buy TOYO CHAIN BLOCK (CHAIN HOIST) in Nigeria Online @ jashsupplies.com
Make your work easy, Make your life easier LEARN HOW DEVICE WORKS HERE
Download Datasheet/user Manual TOYO CHAIN BLOCK (CHAIN HOIST).PDF

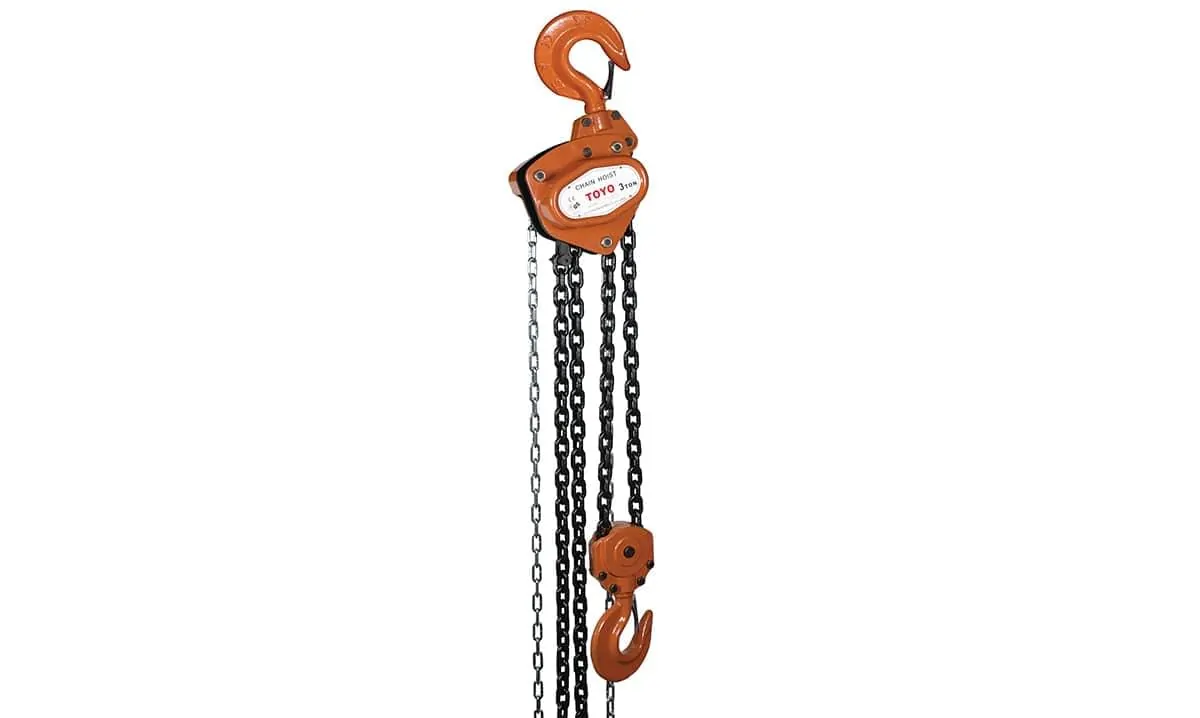

Toyo Chain block (Chain Hoist) made from Japan by the Toyo company is sold in Nigeria by Jash&Josh supllies and comes in a variety of sizes like the 1TON x 3Metres, 2TON x 3Metres, 3TON x 3Metres, 5TON x 3Metres, 1TON x 6Metres, 2TON x 6Metres, 3TON x 6Metres, 5TON x 6Metres, all available at a moment notice
TOYO manual chain block model TCB are for heavy duty use with long lasting reliability. High strength steel body and gear case are built to be durable for rugged needs of construction, mechanical and maintenance rigging. We have TCB with a lifting capacity of 500 kgs to 50,000 kgs. We use grade 80 alloy steel load chains. Made with Japanese design and technology, the guide plate helps to avoid slippage of load chain during usage versus the conventional guide rollers. Toyo chain hoist hooks are forged heat treated steel. The top hook is used to fix the hoist to the anchor point and bottom hook is the load hook, this is raised and lowered by simply pulling down the hand chain. TCB is being produced from first grade components which ensure maximum durability, rough and tough usage and longer service life. TCB hoists are economical and practical choice for efficient and trouble-free service. Product is widely used for lifting loads they can be used along with manual push trolley also. The products are proof load tested and supplied with a test certificate and user manual.
Read MoreTOYO CHAIN BLOCK (CHAIN HOIST) Product features
With its compact design, manual chain hoist is ideal for light weight robust construction. It comes with an automatic dual pawl breaking system. It has a double cover protection to ensure smooth operation. The manual chain hoist has a capacity that ranges from 0.5T to 50T. With its distinct features, heavy loads can be lifted with minimum effort. The galvanized zinc plating protects the chain hoist from corrosion and also features heavy-duty forged hooks which are fitted with safety latches as per standards. Consisting of high quality 80 alloy load chain, sealed bearing and extra thick asbestos free friction discs, this hoist is ideal equipment for construction. The product complies with the EC Council Directive 2006/42/EC, Machinery.
TOYO CHAIN BLOCK Key Information
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC. This document clearly states the proof test at 1.5 times the rated capacity and the light load test of 2% of the rated capacity, which exceeds the requirements of the current applicable standard.
| TECHNICAL PARAMETERS | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | TCB – 005 | TCB – 010 | TCB – 015 | TCB – 020 | TCB – 030 | TCB – 050 | TCB – 075 | TCB – 100 | TCB – 150 | TCB – 200 | TCB – 300 | ||
| Capacity | t | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 7.5 | 10 | 15 | 20 | 30 | |
| Standard Lift | m | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Proof Load | t | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 11.25 | 15 | 22.5 | 30 | 45 | |
| Effort required to lift rated load | n | 200(20.5) | 320(32.5) | 360(36.5 | 365(37) | 385(39) | 435(44.3) | 435(44.3) | 435(44.3) | 435(44.3) | 435×2(44.3×2) | 435×2(44.3×2) | |
| Load chain | mm | 6×18 | 6×18 | 8×24 | 8×24 | 8×24 | 10×30 | 10×30 | 10×30 | 10×30 | 10×30 | 10×30 | |
| Strands Of Load Chain | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 4 | 8 | 8 | 12 | ||
| Dimensions (mm) | A | 137.5 | 146.5 | 170 | 170 | 170 | 190.4 | 190 | 190 | 241 | 209 | 312 | |
| B | 137 | 162 | 183 | 194 | 220 | 288 | 377 | 384 | 416 | 625 | 691 | ||
| Hmin | 270 | 317 | 399 | 414 | 465 | 636 | 768 | 798 | 918 | 890 | 1380 | ||
| D | 35 | 35.5 | 45 | 42.5 | 50 | 64 | 64 | 85 | 85 | 110 | 110 | ||
| K | 28 | 26 | 32.5 | 32 | 37 | 46 | 46 | 50 | 61 | 81 | 81 | ||
| Net weight | kg | 8.4 | 11 | 16.2 | 18.5 | 25.6 | 42.8 | 62.5 | 79.5 | 115 | 163.6 | 220 | |
| Extra weight per meter of extra lift | kg | 1.7 | 1.7 | 2.3 | 2.3 | 3.7 | 5.3 | 7.5 | 9.7 | 13.8 | 19.4 | 28.2 | |
TOYO CHAIN BLOCK Technical Drawing
@ Jashsupplies.com we deliver to everywhere in Nigeria Including Lagos, Portharcourt, Abuja, Kano and Kaduna within 3-5 days
Jash & Josh Supplies are suppliers and dealers of Safety tools and equipment, Power tools, welding Machine and accessories, Electrical accessories, Test and Measurement equipment, chain blocks and lifting belts are dealers of Toyo and Vital chain blocks and lifting belts in Nigeria.
