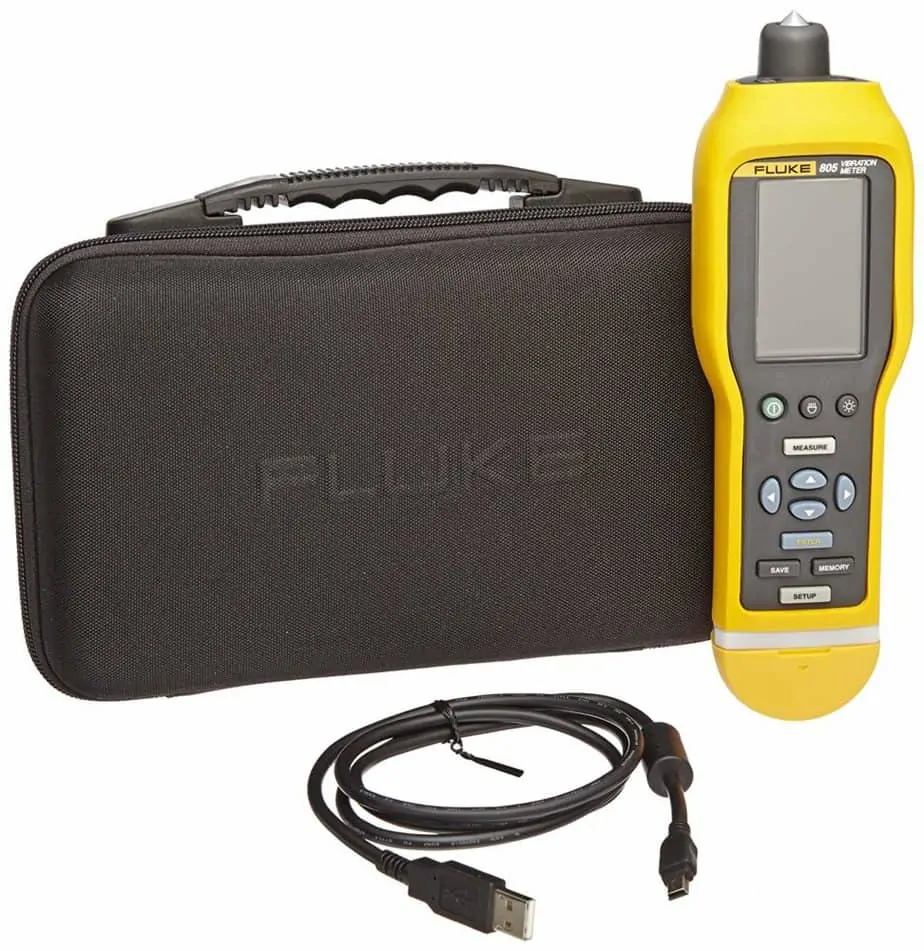

Fluke 805 FC Vibration Meter
Buy original Fluke 805 fc vibration Meter In Nigeria @ jashsupplies.com
Make Your Work easy, Make your Life Easier
Learn How Fluke 805 fc vibration meter works here
Download Datasheet/Manual f0r Fluke 805 fc vibration meter.pdf
Fluke Corporations is the foremost Manufacturer and Makers of industrial test, measurement and diagnostic equipment including electronic test equipment. Known for quality and precision worldwide, Fluke is the standard for measuring Test and equipment manufacturers.
Original Fluke Test and measurement equipment is sold @jashsupplies.com with 12months warranty
Read More
The 805 FC enables technicians to confidently track bearing impacting, bearing health, overall vibration level, overall machine health, and bear-ing surface temperature. Its proprietary algorithm known as “Crest Factor Plus” identifies bearing flaws much earlier than simpler vibration meters
The 805 FC is designed to be used by any level technician and take readings during route-based maintenanceRead More
Make go or no-go maintenance decisions with confidence. The Fluke 805 FC Vibration Meter is the most reliable vibration screening device available for frontline mechanical troubleshooting teams that need repeatable, severity-scaled readings of overall vibration, bearing health and machine health.Manage and monitor workflow for better maintenance resultsUsing the Fluke Connect Mobile App it??s now easier than ever to manage your vibration screening workflow. Integrated machine profile functionality allows you to setup machine profiles using the app and then push them directly to your 805 FC Vibration Meter. Users can then use the list of machine profiles to create work orders, and develop route based maintenance schedules which can be dynamically sent to technicians in field, helping to ensure the proper focus on critical assets. Once a machine is tested, the 805 FC communicates the results directly to the app and associates them with the proper profile and route. This data can easily be shared between teams, so you can make better maintenance decisions.
Read MoreKey features
- EASY SETUP
Quickly create asset list and work order on your PC, setup machine profiles using Fluke Connect App on your smart device, push routes to your 805 FC for your technicians in the field.
- EASY SETUP
- CONSISTENT DATA QUALITY
Take accurate, reliable measurements at both low and high frequency ranges
- CONSISTENT DATA QUALITY
- MOBILE DATA ACCESS
Store results in the cloud and share data with your team remotely
- MOBILE DATA ACCESS
- INNOVATIVE SENSOR DESIGN
Minimize measurement variations caused by device angle or contact pressure
- INNOVATIVE SENSOR DESIGN
Other useful features:
- Reliable, repeatable, accurate device for checking bearings and overall vibration
- Features innovative sensor design that minimizes measurement variations caused by device angle or contact pressure
- Provides consistent data quality at both low and high frequency ranges
- Offers four-level severity scale to assess urgency of problems and bearing condition
- Allows you to export data via USB or wirelessly, through the Fluke Connect?? mobile app
- Compatible with Fluke Connect?? Mobile App that can transmit measurements to your smartphone to be shared in real time
- Enables you to get authorization to take next steps in an instant if machine health is at risk via Fluke Connect? mobile app*
- Allows you to view trending in Microsoft?? Excel using pre-built templates
- Measures overall vibration (10 Hz to 1,000 Hz) for acceleration, velocity, and displacement units of measurement for a wide variety of machines
- Provides Crest Factor+ technology for reliable bearing assessment using direct sensor tip measurements between 4,000 Hz and 20,000 Hz
- Compares vibration levels with ISO-10816 severity scales and stores results to the Fluke Connect Cloud
- Features colored lighting system (green, red) and on-screen comments to indicate how much pressure needs to be applied to take measurements
- Measures temperature with Spot IR Sensor to increase diagnostic capabilities
- Holds and saves up to 3,500 measurements in on-board memory
- External accelerometer (optional) support for hard to reach locations
- Features built-in flashlight for viewing measurement locations in dark areas
- Provides large high-resolution display for easy navigation and viewing
Specifications: Fluke 805 FC Vibration Meter
| Specifications | |
| Low frequency range (overall measurement) | 10 Hz to 1,000 Hz |
| High frequency range (CF+ measurement) | 4,000 Hz to 20,000 Hz |
| Severity levels | Good, satisfactory, unsatisfactory, unacceptable |
| Vibration limit | 50 g peak (100 g peak-peak) |
| A/D converter | 16-bit |
| Signal to noise ratio | 80 dB |
| Sampling rate | Low frequency: 20,000 Hz nHigh frequency: 80,000 Hz |
| Real time clock backup | Coin battery |
| Sensor | |
| Sensitivity | 100 mV g ñ 10% |
| Measurement range | 0.01 g to 50 g |
| Low frequency range (overall measurement) | 10 Hz to 1,000 Hz |
| High frequency range | 4,000 Hz to 20,000 Hz |
| Resolution | 0.01 g |
| Accuracy | At 100 Hz ñ 5% of measured value |
| Amplitude Units | |
| Acceleration | g, m/sec ý |
| Velocity | in/sec, mm/sec |
| Displacement | mils, mm |
| Infrared Thermometer (Temperature Measurement) | |
| Range | -20 øC to 200 øC (-4 øF to 392 øF) |
| Accuracy | ñ2 øC (4 øF) |
| Focal length | Fixed, at ~3.8 cm (1.5″) |
| External Sensor | |
| Note: Fluke supports but does not provide external sensors | |
| Frequency range | 10 Hz to 1,000 Hz |
| Bias voltage (to supply power) | 20 V dc to 22 V dc |
| Bias current (to supply power) | Maximum 5 mA |
| Firmware | |
| External interfaces | USB 2.0 (full speed) communication |
| Data capacity | Database on internal flash memory |
| Upgrade | Through USB |
| Memory | Up to 3,500 measurements |
| Radiated Emission | |
| Electrostatic discharge: burst | Standard EN 61000-4-2 |
| Electromagnetic interference | Standard EN 61000-4-3 |
| RE | Standard CISPR 11, Class A |
| Environmental | |
| Operating temperature | -20 ?øC to 50 øC (-4 øF to 122 øF) |
| Storage temperature | -30 øC to 80 øC (-22 øF to 176 øF) |
| Operating humidity | 10% to 95% RH (non-condensing) |
| Operating/storage altitude | Sea level to 3,048 meters (10,000 feet) |
| IP rating | IP54 |
| Vibration limit | 500g peak |
| Drop test | 1 meter |
| General Specifications | |
| Battery type | AA (2) Lithium Iron Disulfide |
| Battery life | 250 measurements |
| Size (L x W x H) | 24.1 cm x 7.1 cm x 5.8 cm n(9.5 in x 2.8 in x 2.3 in) |
| Weight | 0.40 kg (0.89 lb) |
| Connectors | USB mini-B 7-pin, external sensor jack (SMB connector) |
Datasheet for the Fluke 805FC Vibration Meter with Fluke Connect
Manual for the Fluke 805FC Vibration Meter with Fluke Connect
Application Note Seven money saving Fluke Tools
Application Note How reporting provides the answers you need
