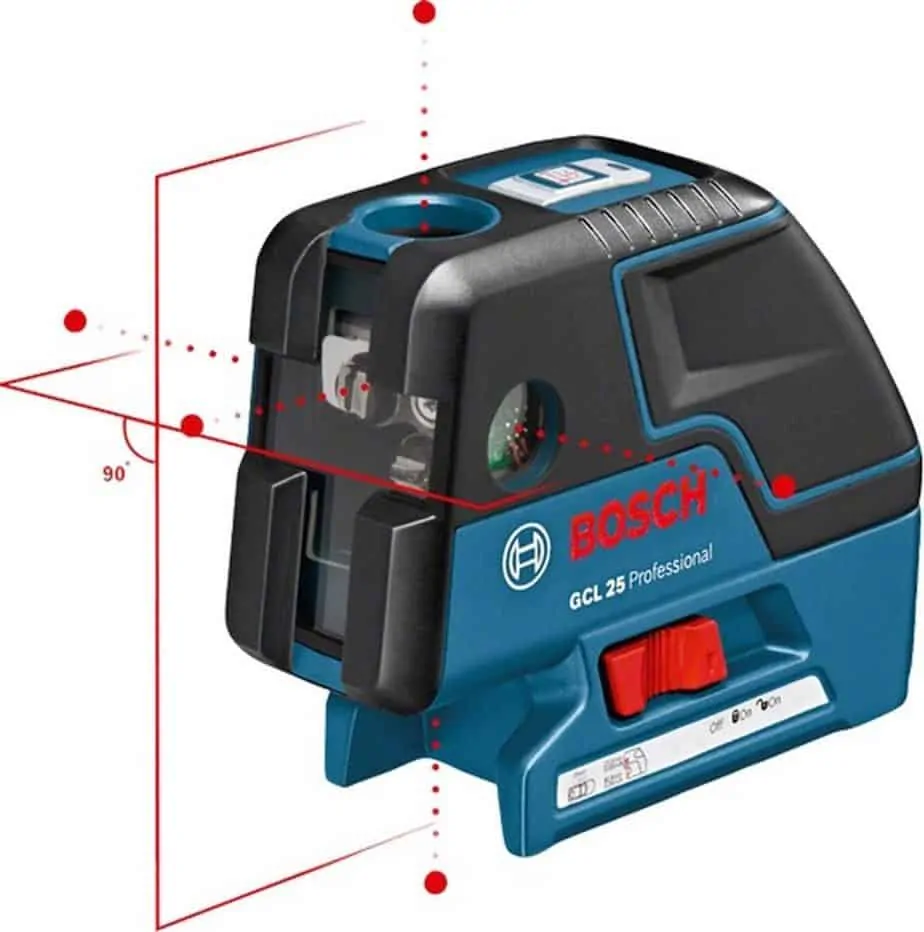

Bosch GCL 25 Point laser professional
Jash Supplies Nigeria offers a wide range of Bosch professional tools, Bosch GCL 25 Point laser professional profers easy solution for all levelling and transfer jobs over short distances it is extremely versatile: cross line laser and five-point laser in one, it is easy to operate because of the intuitive user interface, it has compact and ergonomic design.
GCL 25 Professional comes complete with Laser target plate, L-BOXX inlay for tool, protective bag and 4 units of 1.5v LR6 AA batteries. it is a robust instrument for jobsite use with IP54
Specification overview
Laser diode 635 nm, < 1 mW
Operating temperature -10 ? 50 øC
Storage temperature -20 ? 70 øC
Laser class 2
Self-levelling range ñ 4ø
Levelling time 4 s
Dust and splash protection IP 54
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 30 h
Tripod thread 1/4″, 5/8″
Weight, approx. 0.6 kg
Projection 2 lines / 5 points
Symbol image
Working range in cross mode Working range in cross mode
Range of up to 10 m
Working range in point mode Working range in point mode
Range of up to 30 m
GCL 25 GCL 25
Accurate alignment due to cross line and five-point laser
Levelling accuracy in cross mode Levelling accuracy in cross mode
Levelling accuracy in cross mode ñ 0.3 mm/m
Levelling accuracy in point mode Levelling accuracy in point mode
Levelling accuracy in point mode ñ 0.5 mm/m
What?s Included in this Package
with 4 x battery (AA), accessory set
with 4 x battery (AA), accessory set
Order number: 0 601 066 B01
Building tripod BT 150 Professional
0 601 096 B00
Laser target plate
L-BOXX inlay for tool
Protective Bag
4 x 1.5 V LR6 battery (AA)
Contact us for product information and availability
